Groove - Flatpack Record Table

Date

Spring 2023

Duration

5 Weeks

Project Type

Partner:
Jett Lopez ↗

Prompt

Design a flatpack table that can be assembled in 2 minutes, using only a 2x4ft sheet of plywood and 1 CNC operation

Concept

We decided on a core theme of an abstracted music waveform. Multiple rounds of sketching and laser cut scale models brought us to this final design, which tied the theme through the object’s form and function.

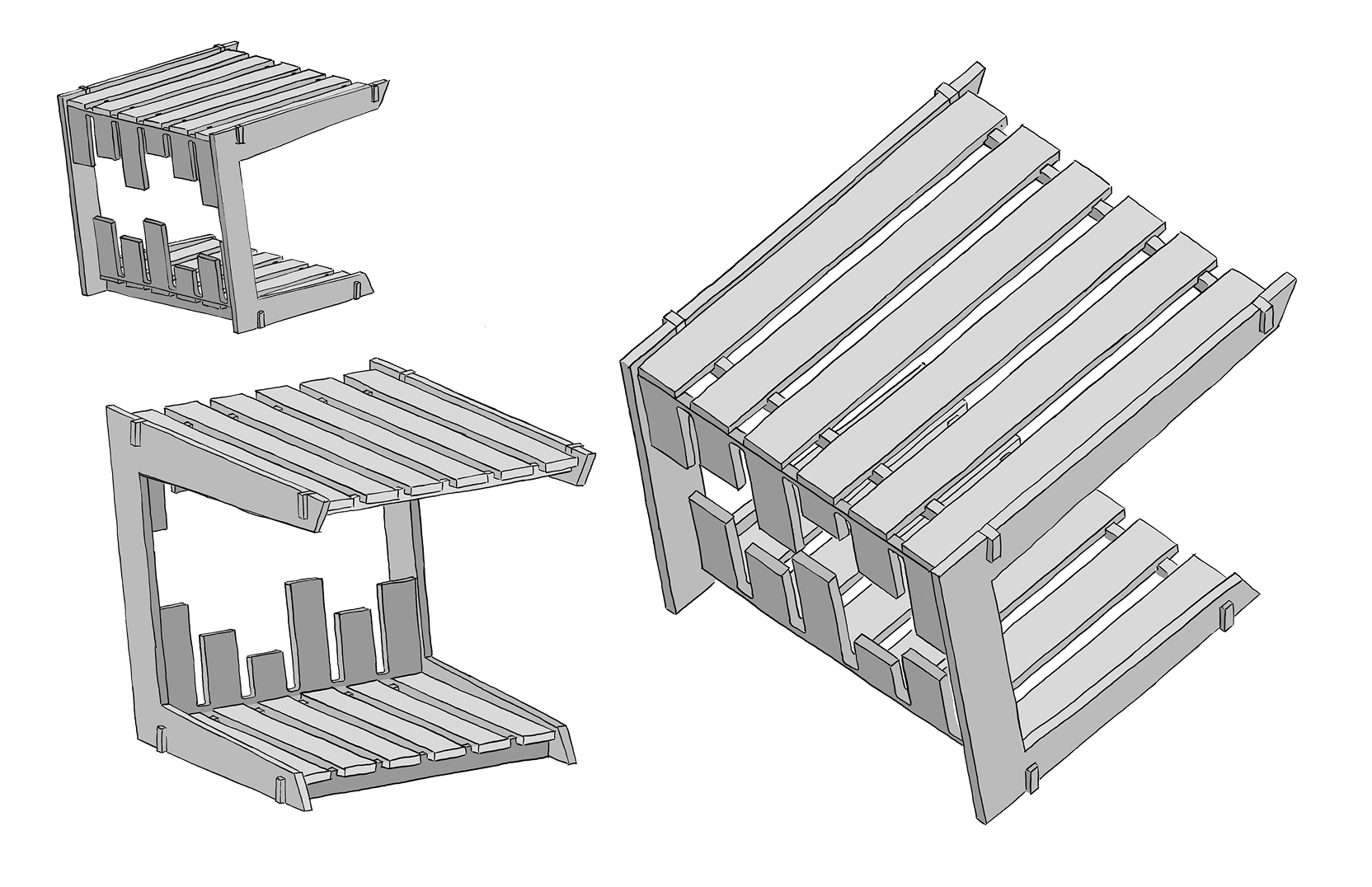

Three CAD renders of the Groove flatpack record table

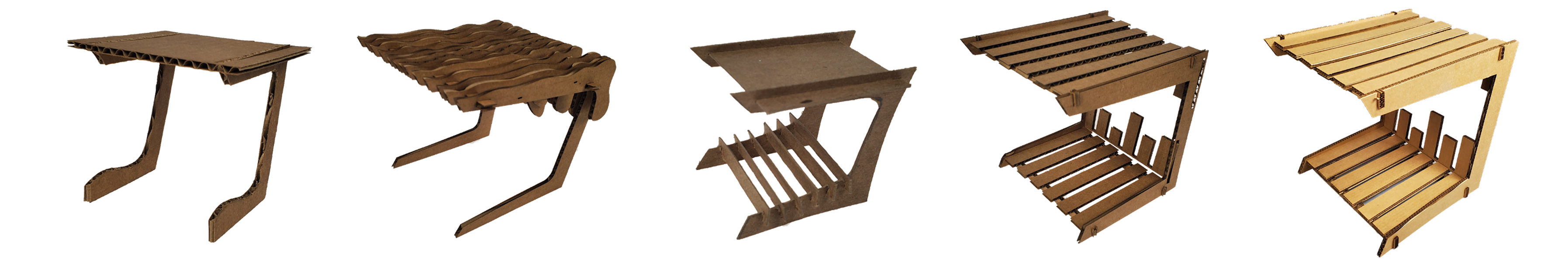

Five laser cut scale model iterations of the Groove table

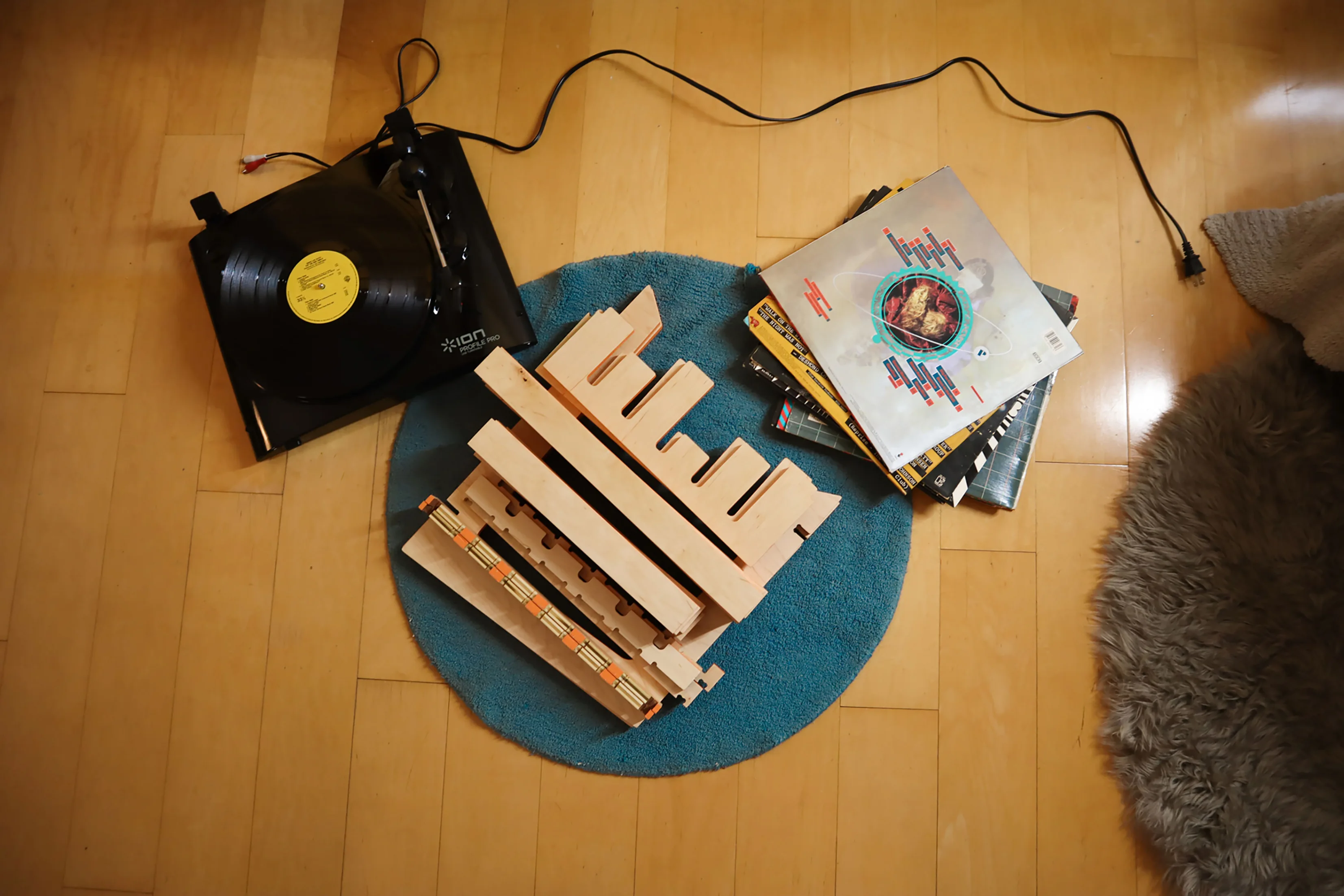

Groove table flatpacked beside a turntable and records

Traditional Joinery

Since the design uses no glue or fasteners, traditional half laps and mortise and tenon joints securely lock the structure together.

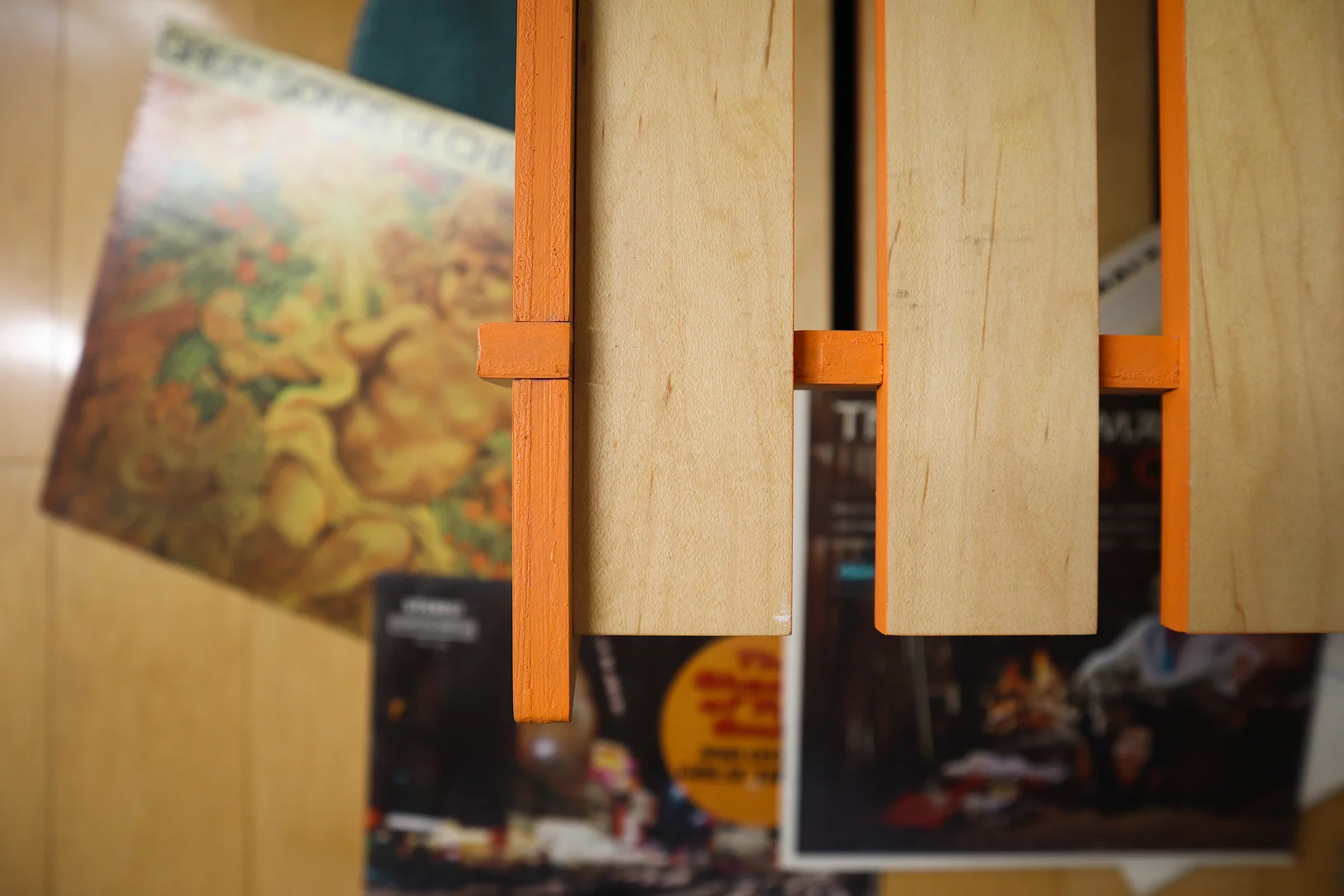

Close-up of the painted half lap joints on the Groove table

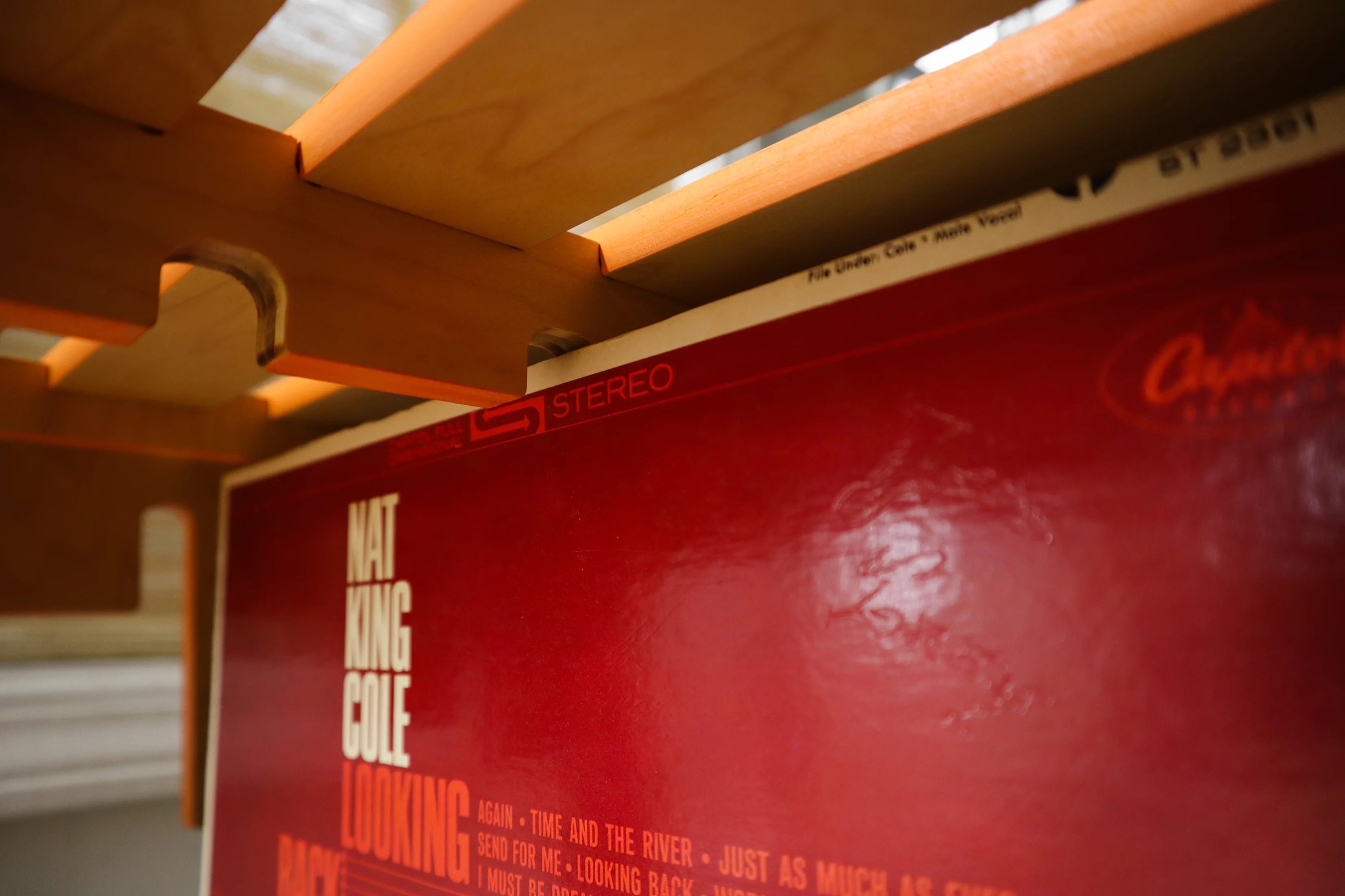

Record held vertically in the grooves under the stretchers

Built-in Storage

Grooves on the undersides of the horizontal stretchers act as slots to hold the records vertically.

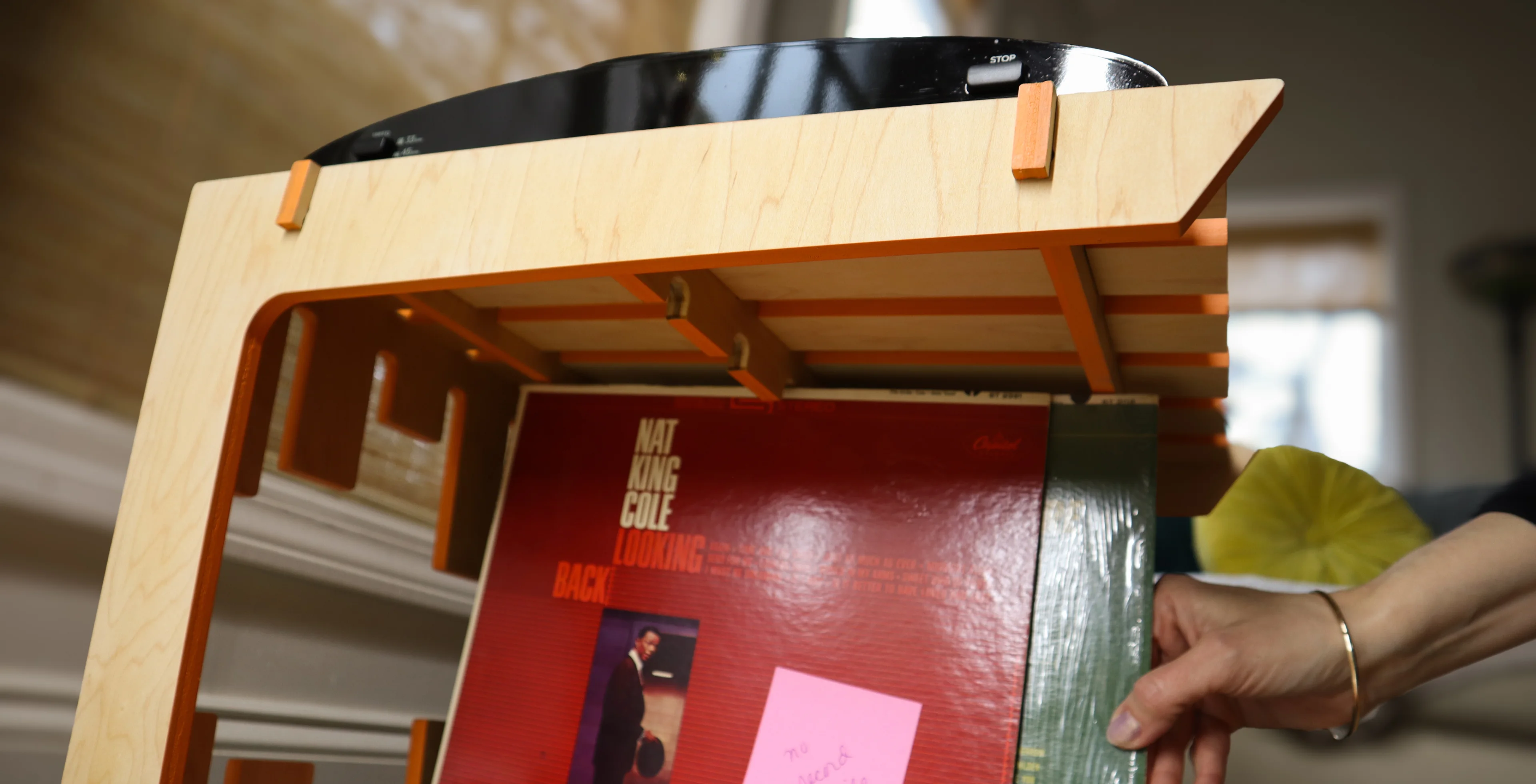

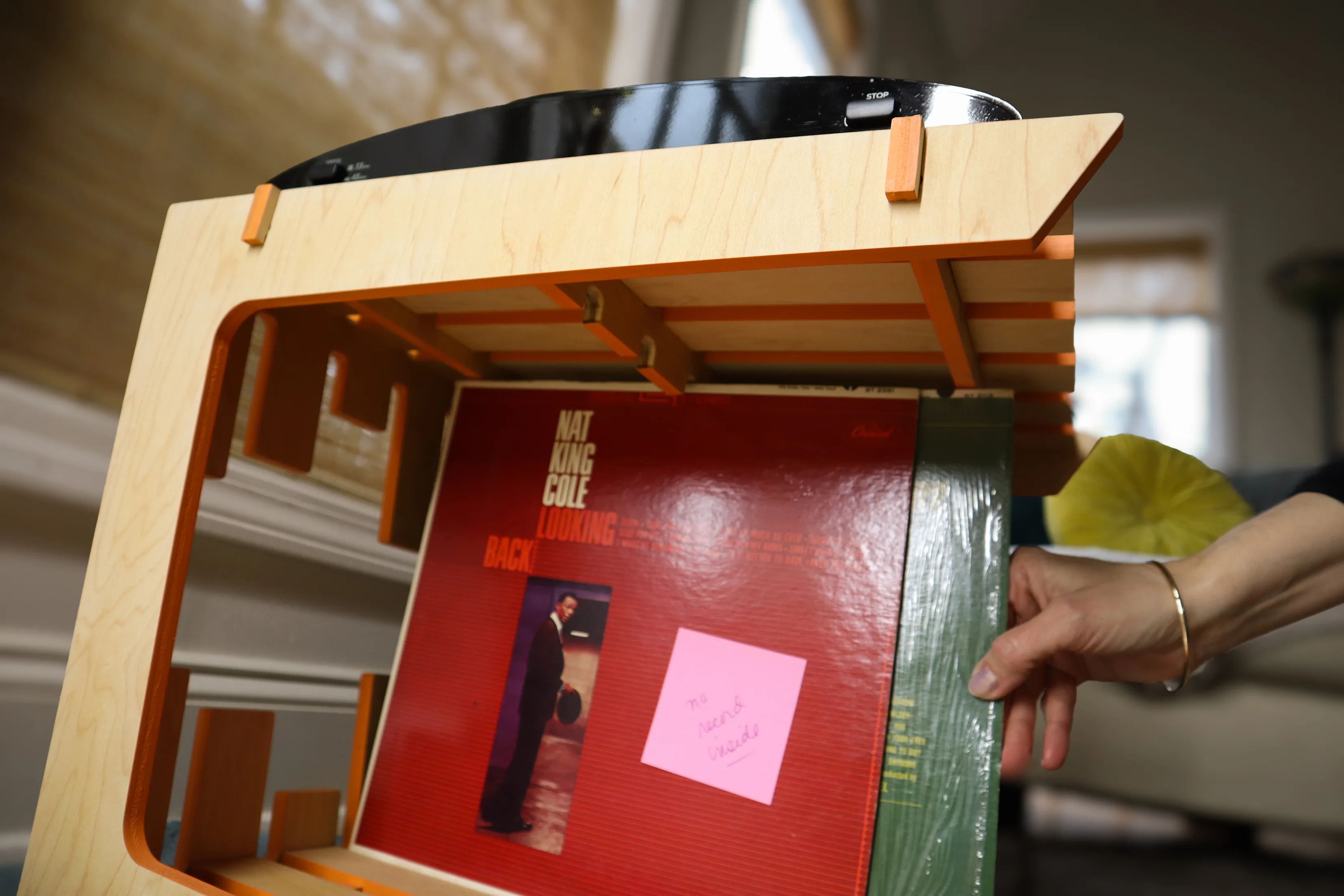

Pulling a record out from under the Groove table

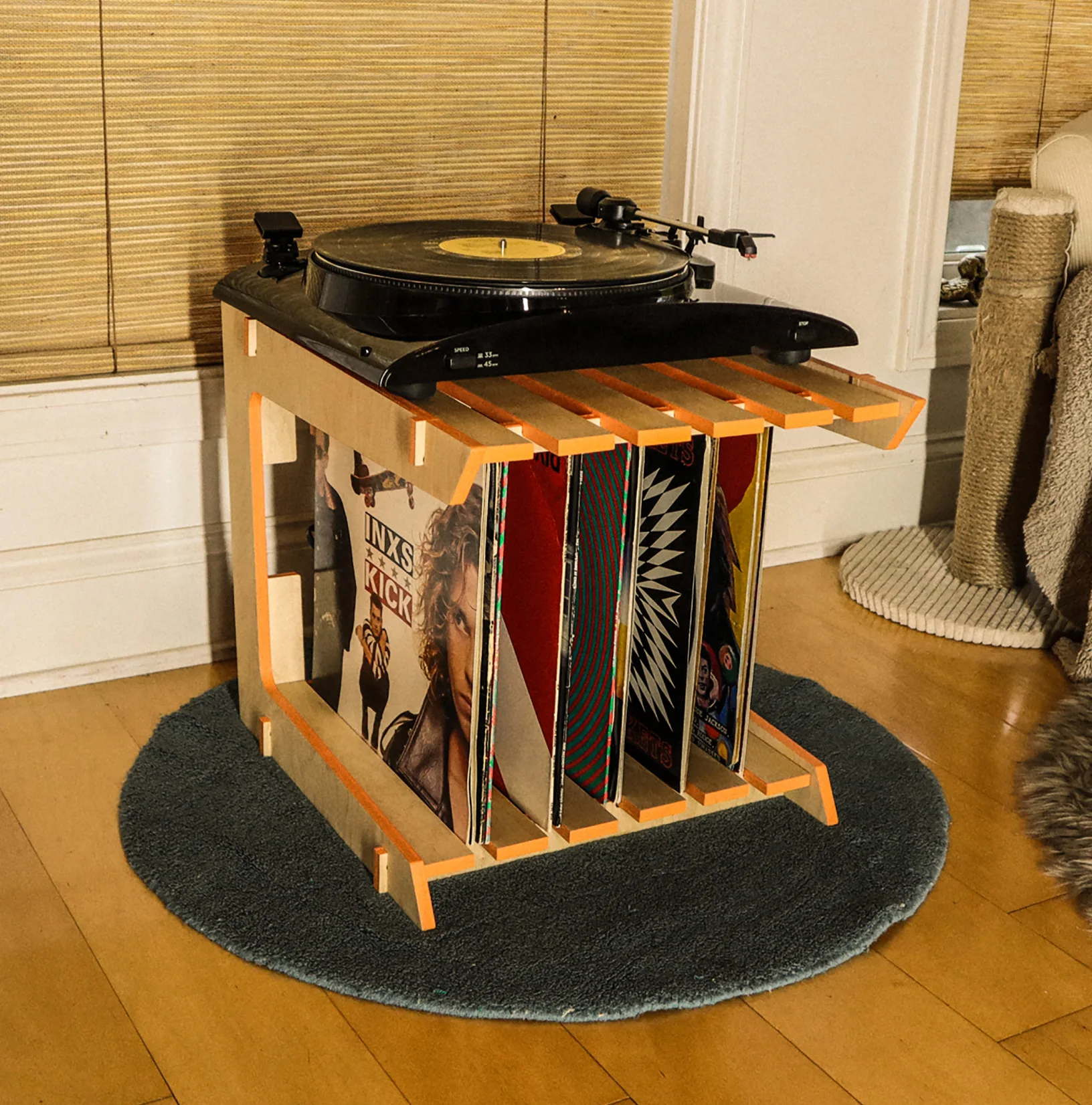

Groove table with a turntable on top and records stored below

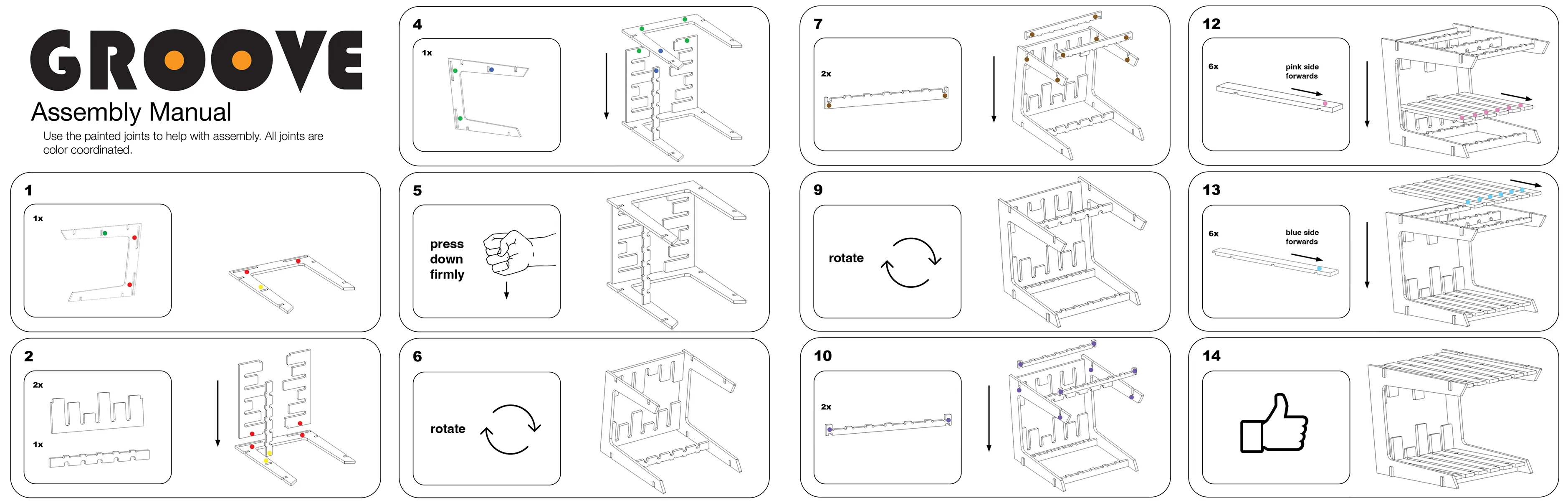

Groove assembly manual with 14 illustrated steps
